openmpp

DOI Lifecycle: stable R-CMD-check

The goal of openmpp is to provide a programmatic interface to the OpenM++ API directly from R to simplify creating scenarios, running models, and gathering results for further processing.

Installation (R Package)

You can install the development version of openmpp from GitHub with:

# install.packages("remotes")
remotes::install_github("mattwarkentin/openmpp")

Installation (OpenM++)

If you do not have access to an existing OpenM++ server, you can download and install OpenM++ locally and run a local server on your workstation. The openmpp package can then connect to this local server instance.

Download

For most users, the best way to install OpenM++ locally is to download the pre-compiled binaries. To install OpenM++, download and unzip the “Source code and binaries” appropriate for your operating system. The latest release of OpenM++ can be found here: https://github.com/openmpp/main/releases/latest. Pre-compiled binaries are available for Mac (Intel and Arm), Windows, and several common Linux distributions (Debian, Ubuntu, RedHat).

NOTE: Windows may allow you to view the contents of the zip directory without extracting, however, the files must be extracted for the installation to function properly.

Running OpenM++ on Windows

Enter the OpenM++ directory using the File Explorer. Right-click anywhere inside the folder and select “Open in Terminal”.

In the Windows Terminal, enter the following command:

.\bin\oms.exe

This will start the process responsible for running the OpenM++ web service (OMS). Note that the local host address will be printed in the console and is the address used by the openmpp R package to communicate with the API. This local host address will be set as the OPENMPP_LOCAL_URL. See the Usage section for more details.

Running OpenM++ on MacOS

Open a new MacOS Terminal window (either by using Spotlight Search or by navigating to “Applications” and then “Utilities” in Finder).

After unzipping the downloaded directory in Finder, drag the folder into the terminal and press Enter. This will change your active directory to the OpenM++ folder.

Enter the following command into the terminal:

bin/oms

Similar to the Windows installation, the web service (OMS) will initiate and the local host address will be shared with the R package for API communication.

Usage

The openmpp package contains many functions that provide access to nearly every OpenM++ API endpoint. However, users of this package will typically only use a smaller set of functions for most common tasks.

User Authentication

Each user is required to set their local or remote host address (i.e., URL) for the OpenM++ API in their global or project-specific .Renviron file in order for the openmpp package to authenticate and communicate with the API on behalf of the user.

If you are working in an IDE (e.g., Positron, RStudio), you may consider using the following function usethis::edit_r_environ() to open your .Renviron file for editing. Note that you will need to restart your R session after editing the file for the effect to take place.

For an API running locally, set the following environment variable in your .Renviron file:

OPENMPP_LOCAL_URL=http://localhost:XXXX

Where XXXX is the four digits corresponding to your specific local host address (typically 4040 is used). The local host address is printed to the console when starting the OpenM++ web service in the terminal.

This package also provides the ability to remotely connect to OpenM++ using JWT tokens. For an API running remotely, set the following environment variables in your .Renviron file:

OPENMPP_REMOTE_URL=...
OPENMPP_REMOTE_USER=...
OPENMPP_REMOTE_PWD=...

If you aren’t sure of your remote URL or your username/password, you may contact your OpenM++ administrator to retrieve this information. Note that the URL, user name, and password should be kept confidential and not committed into version control (e.g., git).

Once the environment variables are set, users may register a local or remote API connection in their R scripts.

library(openmpp)
use_OpenMpp_local()

Or,

library(openmpp)
use_OpenMpp_remote()

see ?use_OpenMpp_local or ?use_OpenMpp_remote for more information.

Main Functions

Models, Scenarios, Runs, and RunSets

There are 4 main classes you will work with when using the openmpp package: OpenMppModel, OpenMppWorkset, OpenMppModelRun, and OpenMppModelRunSet. Each of these are R6 classes. R6 is an encapsulated object-oriented programming (OOP) system for R. Use the load_*() set of functions to load a model, workset/scenario, model run, or set of model runs into memory.

Instances of each of these 4 classes have methods (i.e., functions) and fields (i.e., data) associated with them. You can access these functions and data using the standard $ subset operator (e.g., obj$function() or obj$data).

Why use R6? We chose to use the R6 OOP as we believe it can simplify the ability for the R package to communicate with OpenM++ to ensure that all changes made to the microsimulation objects in the R session are propagated and synchronized with the OpenM++ database. Encapsulated OOP allows the internal state of the object (i.e., the connection to the actual object in the OpenM++ database) to be accessed and modified through well-defined and high-level methods, rather than directly manipulating the data with low-level function calls. This approach enforces data integrity, improves code readability, and simplifies maintenance by abstracting away the implementation details of an object and preventing unintended modifications to its state. More information about R6 can be found here.

Developing New Models

Developing new microsimulation or agent-based models in OpenM++ is beyond the scope of this package. In-depth information on model development can be found here: https://github.com/openmpp/openmpp.github.io/wiki/Model-Development-Topics.

Example

Next, we will work through a very simple example of creating a new scenario, extracting parameters to change, changing parameters, running the model, and extracting results. This example will use the RiskPaths model that comes with the OpenM++ software. RiskPaths is a simple, competing risk, case-based continuous time miscrosimulation model (More Information).

To run this example, you must have installed OpenM++, initiated the OpenM++ web service (OMS) in the shell, and configured the R package using the instructions above.

library(openmpp)

use_OpenMpp_local()

Let’s see what models are available:

get_models()
#> # A tibble: 9 × 7
#>   ModelId Name               Digest  Type Version CreateDateTime DefaultLangCode
#>     <int> <chr>              <chr>  <int> <chr>   <chr>          <chr>
#> 1     101 IDMM               bd573…     1 2.0.0.0 2025-06-01 17… EN
#> 2     101 NewCaseBased       be317…     0 1.0.0.0 2025-06-01 17… EN
#> 3     101 NewCaseBased_bili… 2a78a…     0 1.0.0.0 2025-06-01 17… EN
#> 4     101 NewTimeBased       49cec…     1 1.0.1.0 2025-06-01 17… EN
#> 5     101 OzProjGenX         1da1c…     0 0.22.0… 2025-06-01 17… EN
#> 6     101 OzProjX            2e697…     0 0.22.0… 2025-06-01 17… EN
#> 7     101 RiskPaths          d976a…     0 3.0.0.0 2025-06-01 17… EN
#> 8     101 SM1                db37c…     0 1.0.0.0 2025-06-01 17… EN
#> 9       1 modelOne           _2012…     0 1.0     2012-08-17 16… EN

We can now see what worksets and model runs exist for a given model.

get_worksets('RiskPaths')
#> # A tibble: 1 × 10
#>   ModelName ModelDigest     ModelVersion ModelCreateDateTime Name  BaseRunDigest
#>   <chr>     <chr>           <chr>        <chr>               <chr> <chr>
#> 1 RiskPaths d976aa2fb999f0… 3.0.0.0      2025-06-01 17:27:0… Defa… ""
#> # ℹ 4 more variables: IsReadonly <lgl>, UpdateDateTime <chr>,
#> #   IsCleanBaseRun <lgl>, Txt <list>
get_runs('RiskPaths')
#> # A tibble: 1 × 15
#>   ModelName ModelDigest          ModelVersion ModelCreateDateTime Name  SubCount
#>   <chr>     <chr>                <chr>        <chr>               <chr>    <int>
#> 1 RiskPaths d976aa2fb999f097468… 3.0.0.0      2025-06-01 17:27:0… Risk…        1
#> # ℹ 9 more variables: SubStarted <int>, SubCompleted <int>,
#> #   CreateDateTime <chr>, Status <chr>, UpdateDateTime <chr>, RunId <int>,
#> #   RunDigest <chr>, ValueDigest <chr>, RunStamp <chr>

Now we can load the RiskPaths model to inspect.

rp <- load_model('RiskPaths')
rp
#> ── OpenM++ Model ───────────────────────────────────────────────────────────────
#> → ModelName: RiskPaths
#> → ModelVersion: 3.0.0.0
#> → ModelDigest: d976aa2fb999f097468bb2ea098c4daf

We will now load the Default set of input parameters for the RiskPaths model.

rp_default <- load_scenario('RiskPaths', 'Default')
rp_default
#> ── OpenM++ Workset (ReadOnly) ──────────────────────────────────────────────────
#> → ModelName: RiskPaths
#> → ModelVersion: 3.0.0.0
#> → ModelDigest: d976aa2fb999f097468bb2ea098c4daf
#> → WorksetName: Default
#> → BaseRunDigest:

Finally, we will load the base run for the RiskPaths model.

baserun_digest <- rp$ModelRuns$RunDigest[[1]]
rp_baserun <- load_run('RiskPaths', baserun_digest)
rp_baserun
#> ── OpenM++ ModelRun ────────────────────────────────────────────────────────────
#> → ModelName: RiskPaths
#> → ModelVersion: 3.0.0.0
#> → ModelDigest: d976aa2fb999f097468bb2ea098c4daf
#> → RunName: RiskPaths_Default
#> → RunDigest: 40669534e0f7ecc1d5ed55652e2e07e3

We will create a new scenario based on the parameters from the RiskPaths_Default model run.

create_scenario('RiskPaths', 'MyNewScenario', baserun_digest)

We will load the new scenario, copy over the AgeBaselinePreg1 parameter from the base run.

my_scenario <- load_scenario('RiskPaths', 'MyNewScenario')

Let’s reduce the fertility rate by 10% across all age groups…

my_scenario$copy_params('AgeBaselinePreg1')
library(dplyr)

current_rates <- my_scenario$Parameters$AgeBaselinePreg1

reduced_rates <-
  current_rates |>
  mutate(across(-sub_id, \(x) x * 0.9))

my_scenario$Parameters$AgeBaselinePreg1 <- reduced_rates

We will now run the model and give it the name 'ExampleRun'. We use the wait = TRUE flag to make sure we want for the model run to finish before returning to our R session. We use progress = FALSE to avoid printing progress bars in this document. Note that model runs may take a long time when the number of simulation cases is large.

my_scenario$ReadOnly <- TRUE
my_scenario$run('ExampleRun', wait = TRUE, progress = FALSE)

Note that we can use the opts argument and the opts_run() function to configure our run. By default, models are run with 5,000 simulation cases and 12 SubValues. This allows for quick model runs and faster iteration, but users will want to increase the number of simulation cases when performing a full model run.

Now that our model run is complete, let’s load it into memory.

example_run <- load_run('RiskPaths', 'ExampleRun')
example_run
#> ── OpenM++ ModelRun ────────────────────────────────────────────────────────────
#> → ModelName: RiskPaths
#> → ModelVersion: 3.0.0.0
#> → ModelDigest: d976aa2fb999f097468bb2ea098c4daf
#> → RunName: ExampleRun
#> → RunDigest: e2c64228dbbaeef02e074013aaeebf38

We can now extract an output table from the Tables field in the model run object (example_run$Tables).

example_run$Tables$T06_BirthsByUnion
#> # A tibble: 7 × 3
#>   expr_name Dim0                   expr_value
#>   <chr>     <chr>                       <dbl>
#> 1 Expr0     US_NEVER_IN_UNION         1205.
#> 2 Expr0     US_FIRST_UNION_PERIOD1    2944.
#> 3 Expr0     US_FIRST_UNION_PERIOD2     333.
#> 4 Expr0     US_AFTER_FIRST_UNION        10.0
#> 5 Expr0     US_SECOND_UNION             72.0
#> 6 Expr0     US_AFTER_SECOND_UNION        1.00
#> 7 Expr0     all                       4565.

Great, we have created a new scenario, modified some parameters, ran the model, and extracted output tables. In this last step, we will load multiple model runs into memory to compare them.

rp_runs <- load_runs('RiskPaths', rp$ModelRuns$RunDigest)
rp_runs
#> ── OpenM++ ModelRunSet ─────────────────────────────────────────────────────────
#> → ModelName: RiskPaths
#> → ModelVersion: 3.0.0.0
#> → ModelDigest: d976aa2fb999f097468bb2ea098c4daf
#> → RunNames: [RiskPaths_Default, ExampleRun]
#> → RunDigests: [40669534e0f7ecc1d5ed55652e2e07e3, e2c64228dbbaeef02e074013aaeebf38]

We will extract a new table from both models. Note that an extra column, RunName is added to indicate which model run the output table data corresponds to.

births <- rp_runs$Tables$T06_BirthsByUnion
births
#> # A tibble: 14 × 4
#>    RunName           expr_name Dim0                   expr_value
#>    <chr>             <chr>     <chr>                       <dbl>
#>  1 RiskPaths_Default Expr0     US_NEVER_IN_UNION         1285
#>  2 RiskPaths_Default Expr0     US_FIRST_UNION_PERIOD1    2986
#>  3 RiskPaths_Default Expr0     US_FIRST_UNION_PERIOD2     293
#>  4 RiskPaths_Default Expr0     US_AFTER_FIRST_UNION        11
#>  5 RiskPaths_Default Expr0     US_SECOND_UNION             57
#>  6 RiskPaths_Default Expr0     US_AFTER_SECOND_UNION        1
#>  7 RiskPaths_Default Expr0     all                       4633
#>  8 ExampleRun        Expr0     US_NEVER_IN_UNION         1205.
#>  9 ExampleRun        Expr0     US_FIRST_UNION_PERIOD1    2944.
#> 10 ExampleRun        Expr0     US_FIRST_UNION_PERIOD2     333.
#> 11 ExampleRun        Expr0     US_AFTER_FIRST_UNION        10.0
#> 12 ExampleRun        Expr0     US_SECOND_UNION             72.0
#> 13 ExampleRun        Expr0     US_AFTER_SECOND_UNION        1.00
#> 14 ExampleRun        Expr0     all                       4565.

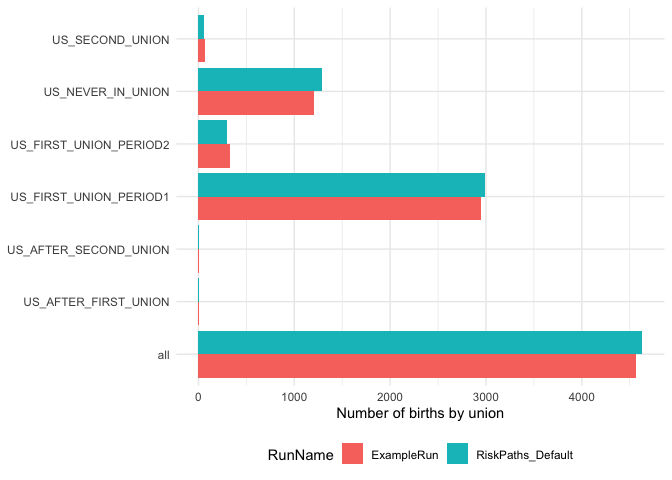

We can even plot this using ggplot2! Note that the number of simulation cases for ExampleRun is low so the results are not to be trusted! This is only for demonstration purposes.

library(ggplot2)

births |>
  ggplot(aes(Dim0, expr_value, fill = RunName)) +
  geom_col(position = position_dodge()) +
  labs(x = NULL, y = 'Number of births by union') +
  coord_flip() +
  theme_minimal() +
  theme(legend.position = 'bottom')

When we are sure we no longer need a scenario or model run, we can use delete_scenario() or delete_run() to clean things up!
