plsmmLasso

R-CMD-check

The objective of plsmmLasso is to facilitate the estimation of a Regularized Partial Linear Semiparametric Mixed-Effects Model (PLSMM) through a dictionary approach for modeling the nonparametric component. The model employs a set of bases functions and automatically selects them using a lasso penalty. Additionally, it conducts variable selection on the fixed-effects using another lasso penalty. The implementation also supports the inclusion of a random intercept.

Installation

You can install the development version of plsmmLasso from GitHub with:

# install.packages("devtools")
devtools::install_github("Sami-Leon/plsmmLasso")

Example I: A Guide to Fitting, Visualization, and Inference

Fitting the model

Here’s a basic example using a simulated dataset to demonstrate how to utilize the main functions of the plsmmLasso package. This example assumes an effect of a grouping variable and different nonlinear functions for each group.

library(plsmmLasso)

# Simulate a dataset
set.seed(123)
data_sim <- simulate_group_inter(
  N = 50, n_mvnorm = 3, grouped = TRUE,
  timepoints = 3:5, nonpara_inter = TRUE,
  sample_from = seq(0, 52, 13),
  cos = FALSE, A_vec = c(1, 1.5)
)
sim <- data_sim$sim

# Fit the data
x <- as.matrix(sim[, -1:-3])
y <- sim$y
series <- sim$series
t <- sim$t
bases <- create_bases(t)
lambda <- 0.0046
gamma <- 0.00001
plsmm_output <- plsmm_lasso(x, y, series, t,
  name_group_var = "group", bases$bases,
  gamma = gamma, lambda = lambda, timexgroup = TRUE,
  criterion = "BIC"
)

One of the most important output of the plsmm_lasso() function is the estimates of the fixed-effects.

plsmm_output$lasso_output$theta
#>  Intercept      group         x1         x2         x3         x4         x5
#> 0.19729689 3.15155151 1.91905369 0.74891414 0.02274130 0.01291499 0.01049015

Here, we observe that some covariates have small values, but most are non-zero. If we desire more regularization for the fixed-effects, we can use a larger value for lambda.

Hyperparameter tuning

lambda <- 0.1
plsmm_output <- plsmm_lasso(x, y, series, t,
  name_group_var = "group", bases$bases,
  gamma = gamma, lambda = lambda, timexgroup = TRUE,
  criterion = "BIC"
)
plsmm_output$lasso_output$theta
#> Intercept     group        x1        x2        x3        x4        x5
#> 3.5544003 0.4262652 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000

With a larger lasso penalty, more coefficients are set to zero.

The coefficients associated with the nonlinear functions are denoted by alpha.

head(plsmm_output$lasso_output$alpha)
#> [1] -5.576108e-02 -4.720350e-01 -8.130512e-03  2.368476e-10 -7.129181e-06
#> [6]  0.000000e+00

Similar behavior would be observed for the alpha values if we were to increase the value of gamma.

To find optimal values for gamma and lambda, we tune these hyperparameters using BIC-type criteria with the tune_plsmm() function and a grid search.

lambdas <- gammas <- round(exp(seq(log(1), log(1 * 0.00001),
              length.out = 5
)), digits = 5)

tuned_plsmm <- tune_plsmm(x, y, series, t,
                       name_group_var = "group", bases$bases,
                       gamma_vec = gammas, lambda_vec = lambdas, timexgroup = TRUE,
                       criterion = "BIC"
)

The tune_plsmm() function tries every possible combination of the values from lambdas and gammas and returns the model with the best BIC (other options are BICC and EBIC). This example is for illustration purposes only; in practice, a more exhaustive grid should be used.

Plotting the results

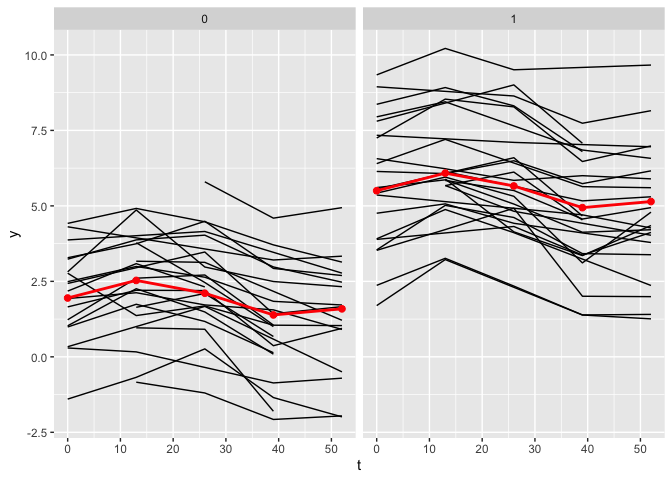

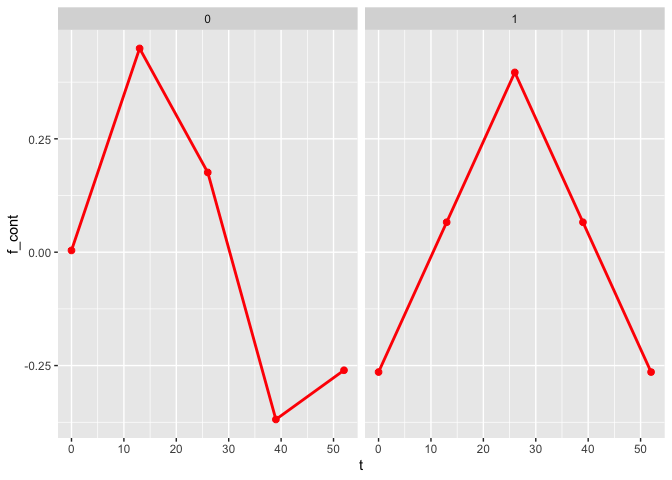

The plot_fit() function allows for the visualization of the estimated mean trajectories as well as the estimate of the nonlinear functions. By default, only the observed time points are being used. To use continuous time points, the argument predicted can be set to TRUE.

plot_fit(x, y, series, t, name_group_var = "group", tuned_plsmm)


plot_fit(x, y, series, t, name_group_var = "group", tuned_plsmm, predicted = TRUE)

Post-selection inference

To compute p-values on the fixed-effects, the debias_plsmm() function can be used.

debias_plsmm(x, y, series, tuned_plsmm)
#>         Estimate   Debiased Std. Error   Lower 95% Upper 95%      p-value
#> group 3.20441442 3.31447827 0.33608394  2.65575376 3.9732028 6.079223e-23
#> x1    1.95569696 2.03694234 0.21339004  1.61869786 2.4551868 1.352832e-21
#> x2    0.72925412 0.68895582 0.26577859  0.16802979 1.2098818 9.535955e-03
#> x3    0.02755599 0.03780433 0.04645279 -0.05324313 0.1288518 4.157466e-01
#> x4    0.01691564 0.02535323 0.04110770 -0.05521786 0.1059243 5.373988e-01
#> x5    0.01569818 0.02732562 0.04056090 -0.05217374 0.1068250 5.005061e-01

The function reports the original coefficients, debiased coefficients, standard errors, confidence intervals and p-values. These p-values are already adjusted for the selection process of the lasso, and provide valid inference.

Test on the nonlinear functions

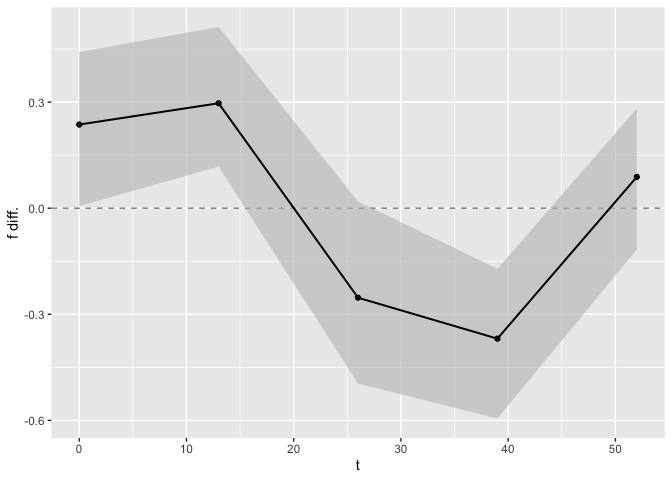

Finally, we can perform tests on the nonlinear functions. The first element of the list is an overall test of equality. If the p-value is \(< 0.05\), we reject the null hypothesis of equality and conclude that overall the two nonlinear functions are different. To obtain a comparison at each time point, confidence bands are computed, and a figure displaying these confidence bands is generated. For the time points associated with confidence bands that include \(0\), we cannot reject the null hypothesis that the nonlinear functions are the same for this time point. The data frame that is used to generate this figure can be found in the second element of the output list.

test_f_results <- test_f(x, y, series, t,
 name_group_var = "group", tuned_plsmm,
 n_boot = 10, verbose = TRUE
)
#>   |                                                                              |                                                                      |   0%  |                                                                              |=======                                                               |  10%  |                                                                              |==============                                                        |  20%  |                                                                              |=====================                                                 |  30%  |                                                                              |============================                                          |  40%  |                                                                              |===================================                                   |  50%  |                                                                              |==========================================                            |  60%  |                                                                              |=================================================                     |  70%  |                                                                              |========================================================              |  80%  |                                                                              |===============================================================       |  90%  |                                                                              |======================================================================| 100%
#>
#> Completed fitting Bootstrap samples. Now formatting results, and generating figure.

test_f_results[[1]]
#>           T p-value
#> 1 0.4785269       0
head(test_f_results[[2]])
#>     t   f diff.  Lower 95% Upper 95%
#> 1 0.0 0.2365327 0.00586791 0.4414301
#> 2 0.1 0.2400843 0.01051297 0.4443028
#> 3 0.2 0.2436013 0.01512247 0.4471456
#> 4 0.3 0.2470832 0.01969562 0.4499582
#> 5 0.4 0.2505294 0.02423163 0.4527404
#> 6 0.5 0.2539394 0.02872971 0.4554919

Similarly to the plot_fit() function, the argument predicted can be changed to TRUE to display the joint confidence bands as a continuous function of time rather than at the observed time points only.

test_f_results <- test_f(x, y, series, t,
 name_group_var = "group", tuned_plsmm,
 n_boot = 10, predicted = TRUE
)
#>   |                                                                              |                                                                      |   0%  |                                                                              |=======                                                               |  10%  |                                                                              |==============                                                        |  20%  |                                                                              |=====================                                                 |  30%  |                                                                              |============================                                          |  40%  |                                                                              |===================================                                   |  50%  |                                                                              |==========================================                            |  60%  |                                                                              |=================================================                     |  70%  |                                                                              |========================================================              |  80%  |                                                                              |===============================================================       |  90%  |                                                                              |======================================================================| 100%
#>
#> Completed fitting Bootstrap samples. Now formatting results, and generating figure.

Example II: Flexibility of the Model

Model fitting without group-specific nonlinear functions

The plsmmLasso package offers flexibility; if the nonlinear functions do not differ between groups, the timexgroup argument can be set to FALSE. Below, we simulate a dataset where the nonlinear functions are the same and fit the data accordingly.

# Simulate a dataset with equal nonlinear functions per group
set.seed(123)
data_sim <- simulate_group_inter(
  N = 50, n_mvnorm = 3, grouped = TRUE,
  timepoints = 3:5, nonpara_inter = FALSE,
  sample_from = seq(0, 52, 13),
  cos = FALSE, A_vec = c(1, 1.5)
)
sim <- data_sim$sim

# Fit the data
x <- as.matrix(sim[, -1:-3])
y <- sim$y
series <- sim$series
t <- sim$t
bases <- create_bases(t)
tuned_plsmm <- tune_plsmm(x, y, series, t,
                       name_group_var = "group", bases$bases,
                       gamma_vec = gammas, lambda_vec = lambdas, timexgroup = FALSE,
                       criterion = "BIC"
)

plot_fit(x, y, series, t, name_group_var = "group", tuned_plsmm)

As observed, the estimates of the nonlinear functions are identical.

Model fitting without grouping variable

It is also possible not to use any grouping variable for the name_group_var argument. Here, we simulate a dataset without the effect of a grouping variable, resulting in no difference in the height of the overall mean trajectories and using the same nonlinear functions.

# Simulate a dataset with no group effect
set.seed(123)
data_sim <- simulate_group_inter(
  N = 50, n_mvnorm = 3, grouped = FALSE,
  timepoints = 3:5, nonpara_inter = FALSE,
  sample_from = seq(0, 52, 13),
  cos = FALSE, A_vec = c(1, 1.5)
)
sim <- data_sim$sim

# Fit the data
x <- as.matrix(sim[, -1:-3])
y <- sim$y
series <- sim$series
t <- sim$t
bases <- create_bases(t)
tuned_plsmm <- tune_plsmm(x, y, series, t,
                       name_group_var = NULL, bases$bases,
                       gamma_vec = gammas, lambda_vec = lambdas, timexgroup = FALSE,
                       criterion = "BIC"
)

plot_fit(x, y, series, t, name_group_var = NULL, tuned_plsmm)

Only one figure is displayed now since there is no grouping variable.
